Safety and disengageable couplings

Safety couplings, also called torque limiter couplings, are used as torque limiters and as protection against overload. They provide a quick and reliable interruption of the drive component and the driven component if a torque exceeds a preset level.

The safety couplings provide a quick and reliable interruption of the drive component and the driven component if a torque stop exceeds a preset level. This helps prevent damage and downtime. Safety couplings offered by BJ-Gear operate as overload breakaway devices and operate on a spring-loaded ball bearing principle. The safety couplings provide a rigid transmission without any backlash during normal operation, and the ball will be released from the bearings to disengage the drive line if the application torque surpasses a preset limit.

BJ-Gear offers safety couplings from German KBK Antriebstechnik and R+W Couplings.

From KBK we offer safety couplings with ball bearings, safety couplings with metal bellow as well as safety couplings with elastomer inserts as the compensating element. Safety couplings from KBK have a shaft diameter between 3-70 mm depending on model and a torque range of 3-1400 Nm. From R+W we offer safety couplings with torques up to 250 kNm and a shaft diameter up to 340 mm.

Safety couplings from R+W

Safety and disengageable couplings

BJ-Gear offers six different models of R+W's safety couplings with torques up to 250 kNm and a shaft diameter up to 340 mm.

ES2 - Torque limiter with clamping hub, press-fit version for direct drives
  • Six different sizes: 5, 10, 20, 60, 150 and 300.
  • Elastomer insert
  • Reliable torque overload protection
  • Short compact design
  • Press fit design.
  • Backlash free
  • Disengage within m.secs.
ESL - Torque limiter, economy class with clamping hub, press-fit version for direct drives
  • Five different sizes: 5, 10, 20, 60, and 150
  • Elastomer insert
  • Reliable torque overload protection
  • Compact, simple, economical and press fit design
  • Multi position engagement
  • Low wear
  • Backlash free
SK1 - Torque limiter with conical clamp
  • 14 different sizes: 1.5, 2, 4.5, 10, 15, 30, 60, 150, 200, 300, 500, 800, 1500, 2500
  • Torque from 0,1-2800 Nm
  • Precise torque overload protection
  • Absolutely backlash-free and torsionally rigid
  • Compact, simple design
  • Disengagement detection achieved through high indexing ring movement
  • Low residual friction following disengagement
  • Low moment of inertia
  • Self-adjusting
  • Disengagement within 1 - 3 msecs.
SK2 - Torque limiter with clamping hub for direct drives
  • 14 different sizes: 1.5, 2, 4.5, 10, 15, 30, 60, 80, 150, 200, 300, 500, 800, 1500
  • Torque: 0.1-1800 Nm
  • Absolutely backlash-free and torsionally rigid
  • Easy mounting and dismounting
  • Adjustable settings
  • Electrically ant thermally insulated
  • Compensation of shaft misalignments
  • Low moment of inertia
  • Actuation ring moves to trigger external sensor
  • Disengagement within 1 - 3 msecs



SLN/SLP - Torque limiter - with clamping hub for indirect drives or with pure keyway connection
  • 4 different sizes: 30, 60, 150 and 300
  • Torque: 10-700 Nm
  • Extremely lightweight construction
  • Integral bearing for timing belt pulley or sprocket
  • Compact, simple construction
  • Torque setting is continuously variable
  • SLP: simple keyed connection / SLN: frictional clamp connection
  • Simple to install
ST1 - Torque limiter with keyway connection for indirect drives
  • 9 sizes: 2, 5, 10, 25, 40, 60, 100, 160, 250
  • Torque: 0.2-250 kNm
  • Compact, simple design
  • Precise overload protection
  • Torsionally rigid
  • Integral bearings for timing belt, pulley or sprocket

Safety couplings from KBK

Safety and disengageable couplings

BJ-Gear offers eight different models of KBK's safety couplings with ball bearings. They are ideal for mounting pulleys and sprockets.

KBK/LP and KBK/LLP - with key way
  • Backlash-free
  • Easy assembly with key way
  • Torque range: 3-1400 Nm
  • Version "LL" with two ball bearings for high radial loads
KBK/LK and KBK/LLK - with collet clamp and two bearings
  • Backlash-free
  • Fast assembly with clamp hub
  • Torque range: 0.2-500 Nm
  • Version "LL" with two ball bearings for high radial loads
KBK/LI and KBK/LLI - with cone and two bearings
  • Backlash-free
  • Compact inner conical hub, high clamping forces
  • Torque range: 3-1400 Nm
  • Version "LL" with two ball bearings for high radial loads
KBK/LA and KBK/LLA - with outer cone
  • Backlash-free
  • Self-centering and self-releasing outer conical hub, very high clamping forces
  • Torque range: 3-1400 Nm
  • Version "LL" with two ball bearings for high radial loads

Safety couplings with elastomer spider

Safety and disengageable couplings

We offer four different models of KBK's safety couplings with elastomer spider as compensating element. They all have vibration dampening, they compensates for shaft misalignment, they are pluggable, and they have different spiders available for modifying the coupling characteristics.

KBK/EKP- with collet clamp and key way
  • Backlash-free
  • With clamp hub and key way
  • Torque range: 3-500 Nm
  • Outer diameter: 49-129 mm
  • Bore diameter: 4-50 mm
KBK/EKK - with two collet clamps
  • Backlash-free
  • With clamp hubs for fast and easy assembly
  • Torque range: 3-500 Nm
  • Outer diameter: 49-129 mm
  • Bore diameter: 4-62 mm
KBK/EKI - with collet clamp and inner cone
  • Backlash-free
  • With clamp hub and inner conical hub with high clamping forces
  • Torque range: 3-500 Nm
  • Outer diameter: 49-129 mm
  • Bore diameter: 4-55 mm
KBK/EKA - with collet clamp and outer cone
  • Backlash-free
  • With clamp hub and self-centering outer conical hub
  • Torque range: 3-500 Nm
  • Outer diameter: 49-129 mm
  • Bore diameter: 4-55 mm

Safety and disengageable couplings

Safety and disengageable couplings

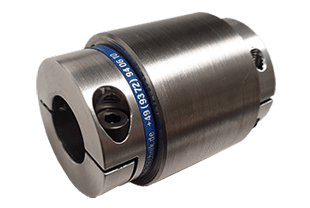

Permanent magnetic coupling with clamp hubs

PMK - Torque limiter with unlimited overload cycles

  • Permanent Magnet coupling with collet clamps
  • Shaft diameter: 3-44 mm
  • Torque range 1.2-60 Nm
  • Work absolutely wear free
  • Fatigue strength
  • Maintenance-free

Safety and disengageable couplings from Desch

Safety and disengageable couplings

From Desch we are able to offer six different types of safety and disengageable couplings. They are ideal to compensate misalignments and have high thermal stability as well as insulating properties. They are easy to assemble and requires no maintenance.

Conax® type CM - friction clutch
  • Expanding symmetrical friction ring* between the cone-shaped metal discs, is divided into six segments held together by a tension spring
  • Axial displacements of the shafts are offset in the bore of the casing when the clutch is disengaged
  • The contact forces in the system cancel each other out, there is no axial loading of the machine bearings when the clutch is engaged.
Conax® type CR - slipping clutch
  • Designed to protect machine components against destruction if overloading or blocking of the driven machine
  • Manufactured in two basic designs, depending on size
  • Sizes 0.5 to 25 are adjusted with a threaded ring,  sizes 50 to 200 are provided with disc spring assemblies
  • Accurate setting of the torque is possible
Planox® type PM - multi plate friction, mechanically actuated
  • Characterized in particular by the spring contact-pressure of the friction element
  • Due to this spring pressure, the peak torques are cut off during the switch-on process
  • Torque range from 150 Nm to 6,100 Nm
Planox® type PMA - multi place friction, actuated mechanically, bell-shaped
  • For attachment to diesel engines
  • The complete clutch, including the bearing, is installed in the clutch bell housing, which forms one unit with the engine after it is attached
  • The large-sized support of the drive shaft in the clutch casing permits the power to be output via flexible couplings, universal joints or belt drives.
  • Torque range from from 150 Nm to 6,150 Nm
  • Body connection SAE 6 to SAE 00
  • Flywheel connection 6“ to 18“
Planox® type PPF-RA - safety coupling for extruder drives
  • A pneumatically engageable dry plate friction clutch
  • Engaged by air pressure
  • The compressed air is fed into the clutch trough the gearbox shaft

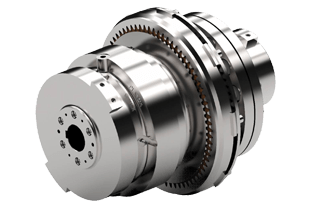

Planox® type PPRF - safety coupling for extruder drives
  • A pneumatically engageable dry plate friction clutch
  • Engaged by air pressure
  • The compressed air is fed in radial direction from outside into the cylinder
  • Long shafts do not have to be bored to allow air passage to activate the clutch.
