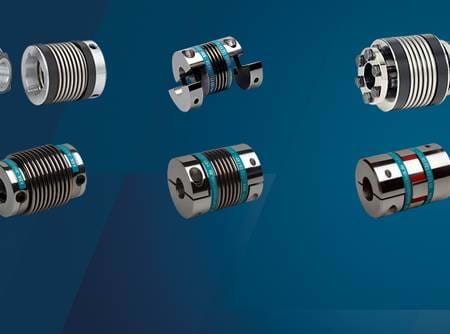

Metal bellow couplings

Metal bellow couplings are ideal in applications where precise positioning and control of machine components are required.  Their high torsional strength ensures accurate transmitted speed, angular positioning, and torque.

The metal bellow couplings are particularly suitable for direct connection between two coaxial shafts. The metal bellows compensate for lateral, axial, and angular shaft misalignment with low recovery forces. The backlash-free, inflexible metal bellows of high torsional strength guarantee precise positioning of the driven load and can be used in applications with high dynamic cyclic operations and at extremely high rotational speeds.

Metal bellow couplings from KBK

Metal bellow couplings

From KBK Antriebstechnik we offer metal bellow couplings that are absolutely backlash free and with high torsional strength. They are maintenance-free, and have high fatigue strength and low restoration forces due to incorrect adjustment. The modular system makes it possible to find a suitable coupling for any mounting situation.

KB1Miniature, with set screws
  • Backlash-free
  • For shaft diameters from 1-24 mm
  • Very cost-effective design
  • Torque range: 0,05-10 Nm

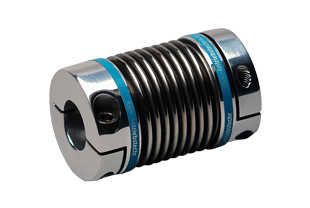

KB2Miniature, with collet clamps
  • Backlash-free
  • For shaft diameters from 1 – 25 mm
  • Easy assembly with friction-locked clamp hubs
  • Torque range: 0.1-10 Nm

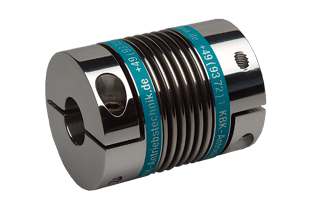

KB4with collet clamps
  • Backlash-free
  • Hub material: up to 60 Nm in aluminium, from 80 Nm in steel
  • For shaft diameters from 10 – 80 mm
  • Easy assembly
  • Torque range: 18-1400 Nm

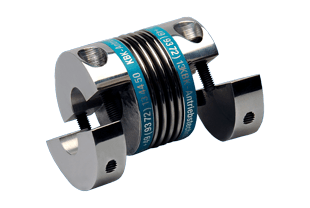

KB4Hwith split hubs
  • Backlash-free
  • For shaft diameters from 10-80 mm
  • Radial assembly
  • Torque range: 18-1400 Nm

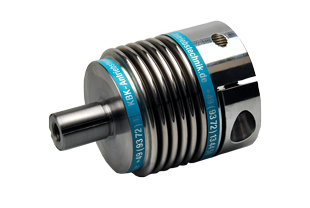

KB8with expanding clamps
  • Backlash-free
  • For shaft diameters from 10-60 mm
  • For adopting hollow shafts, compact and space-saving design
  • Torque range: 18-300 Nm



Metal bellow couplings from R+W

Metal bellow couplings

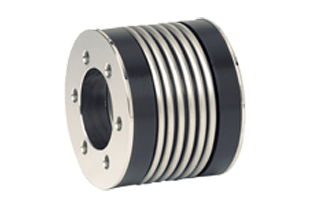

BK1 - with flange mounting for special design application
  • 15-10,000 Nm
  • Maintenance free
  • Special design application
  • Absolutely backlash-free due to bolted connection

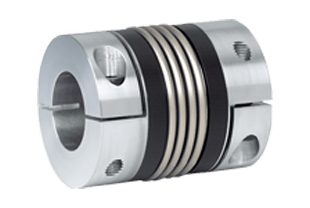

BK2 - with clamping hub
  • 15-10,000 Nm
  • Easy to mount
  • Suited for space restricted installations
  • Low moment of inertia
  • Absolutely backlash-free due to frictional clamp connection.

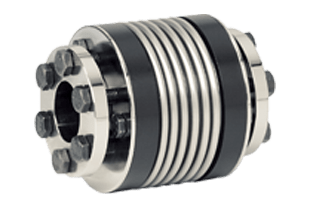

BK3 - with tabered conical sleeves
  • 15-1500 Nm
  • High clamping forces
  • High degree of operating dependability
  • New draw off device suited for space restricted installations
  • Absolutely backlash-free due to frictional clamp connection.

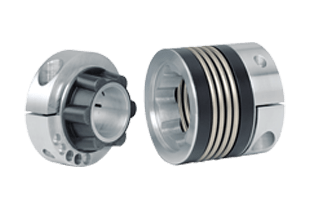

BK5 - with tapered press-fit connection
  • 15-10,000 Nm
  • Easy mounting and dismounting
  • Wear-free and maintenance-free
  • Electrically and thermally insulated
  • Low moment of inertia
  • Compensation for misalignment
  • Absolutely backlash-free and torsionally rigid

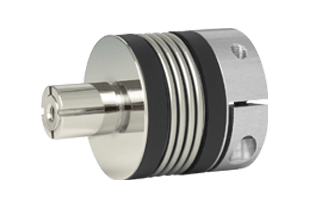

BK7 - with expanding shaft
  • 15-300 Nm
  • Compact design, conserves space while saving cost
  • Easy mounting
  • Low moment of inertia
  • Compensation for misalignment
  • Backlash-free and torsionally rigid

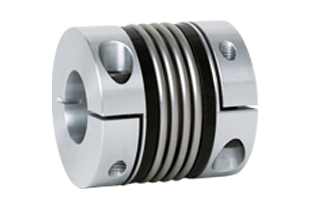

BKC - economy class, compact version, with clamping hub
  • 15-500 Nm
  • For high speeds
  • Easy to mount
  • Suited for space restricted installations
  • Low moment of inertia
  • Absolutely backlash-free due to frictional clamped connection

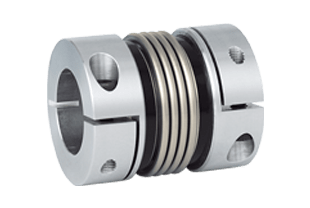

BKL - economy class with clamping hub
  • 2-500 Nm
  • Economically priced
  • Low moment of inertia
  • Easy to mount

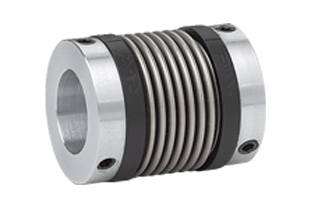

MK1 - Miniature, with radial set screws
  • 0,5-10 Nm
  • Compensates for 3-axis of misalignment
  • A mounting groove or flattening of the shaft is not required due to the integrated dismounting groove
  • Low-cost design
  • Low moment of inertia
  • Backlash-free and torsionally rigid

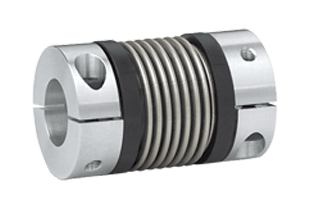

MK2 - Miniature, with clamping hub
  • 0,5-10 Nm
  • Compensates for 3-axis of misalignment
  • Frictional connection utilizing clamping hubs
  • For high dynamic applications
  • Low moment of inertia
  • Backlash-free and torsionally rigid

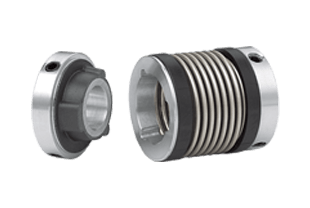

MK4 - Miniature, with radial set screws and press-fit connection
  • 0,5-10 Nm
  • Compensates for 3-axis of misalignment
  • Easy mounting and dismounting
  • Electrically insulated
  • No wear
  • Low moment of inertia
  • Absolutely backlash-free and torsionally rigid

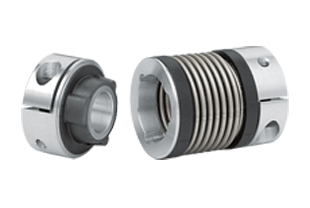

MK5 - Miniature, with clamping hub and press-fit connection
  • 0,5-10 Nm
  • Compensates for 3-axis of misalignment
  • Easy mounting and dismounting
  • Electrically insulated
  • No wear
  • Low moment of inertia
  • Absolutely backlash-free and torsionally rigid

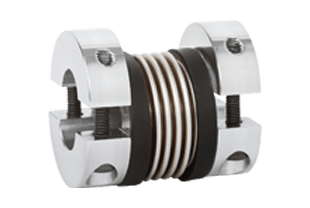

MKH - Miniature, with fully split
  • 0,5-10 Nm
  • For lateral mounting
  • Easy mounting and dismounting
  • Lightweight and low inertia
  • Suited for pre-aligned shafts
